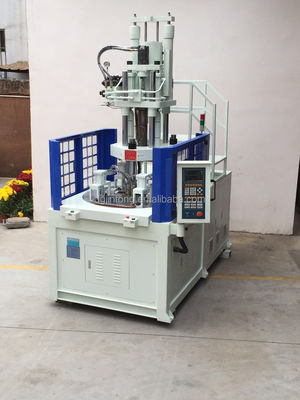

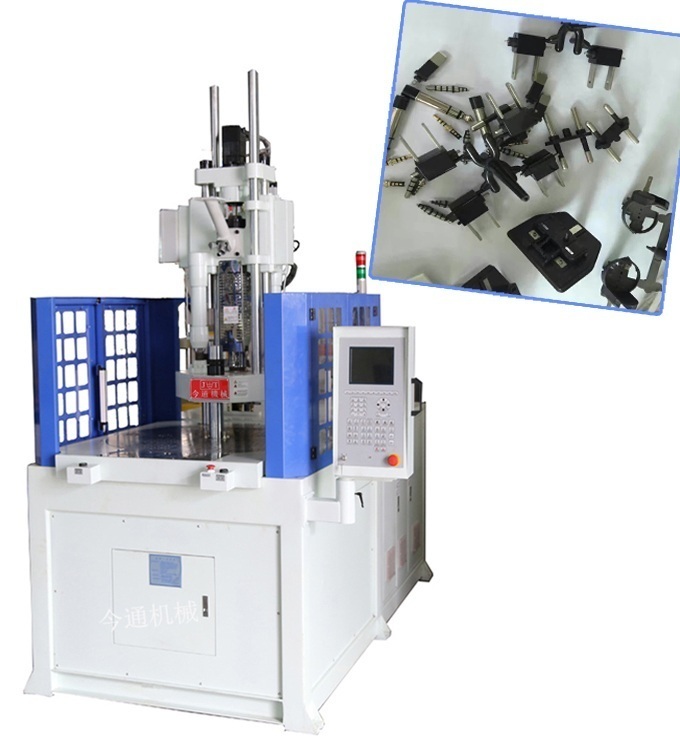

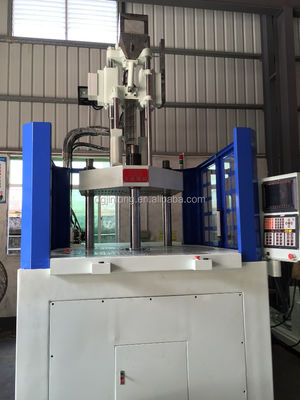

Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume
Detalhes do produto:
| Lugar de origem: | Guangdong, China |
| Marca: | JINTONG |
| Número do modelo: | JTT-850R |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | $26,000-27,000 / piece |
|
Informação detalhada |
|||
| Capacidade de Plastificação: | 180 g/s | Altura do molde: | 110 - 450 mm |
|---|---|---|---|
| Número do ejetor: | 2 | Golpe de ejetor: | 75 mm |
| Força do ejetor: | 33 kN | Volume teórico do tiro: | 276 cm3 |
| Taxa de injeção: | 167 g/s | Peso da injeção: | 330g |
| Velocidade do parafuso: | 1 - 200 Rpm | Diâmetro do parafuso: | 50 mm |
| Razão para parafuso L/D.: | 25 | Distância entre as barras de ligação: | 560 mm |
| Peso: | 4000 kg | Traço Aberto: | 500 mm |
| Poder: | 21.6 kW | ||
| Destacar: | 85T Vertical Injection Molding Machine,33 kN Ejector Force Rotary Injection Molding Machine,276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine |
||
Descrição de produto
Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be adjusted according to actual demand
- Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
- Easy operation for insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Saves 55% cooling water quantity compared to similar products
- Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
- Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
Packing & Delivery
