160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty
Detalhes do produto:
| Lugar de origem: | Guangdong, China |
| Marca: | JINTONG |
| Número do modelo: | JTT-1600R |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | $53,500-56,000 / piece |
|
Informação detalhada |
|||
| Capacidade de Plastificação: | 400 g/s | Altura do molde: | 260 - 530 mm |
|---|---|---|---|
| Golpe de ejetor: | 75 mm | Força do ejetor: | 34 kN |
| Volume de tiro: | 570 cm3 | Taxa de injeção: | 202 g/s |
| Peso da injeção: | 513 g | Velocidade do parafuso: | 1 - 155 rpm |
| Diâmetro do parafuso: | 55 milímetros | Parafusos L/D: | 28 |
| Distância da barra de gravata: | 660 mm | Peso da máquina: | 7000 kg |
| Traço Aberto: | 500 mm | Poder: | 22 KW |
| Dimensões da máquina: | 2,8*2,1*3,4 m | ||
| Destacar: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
Descrição de produto

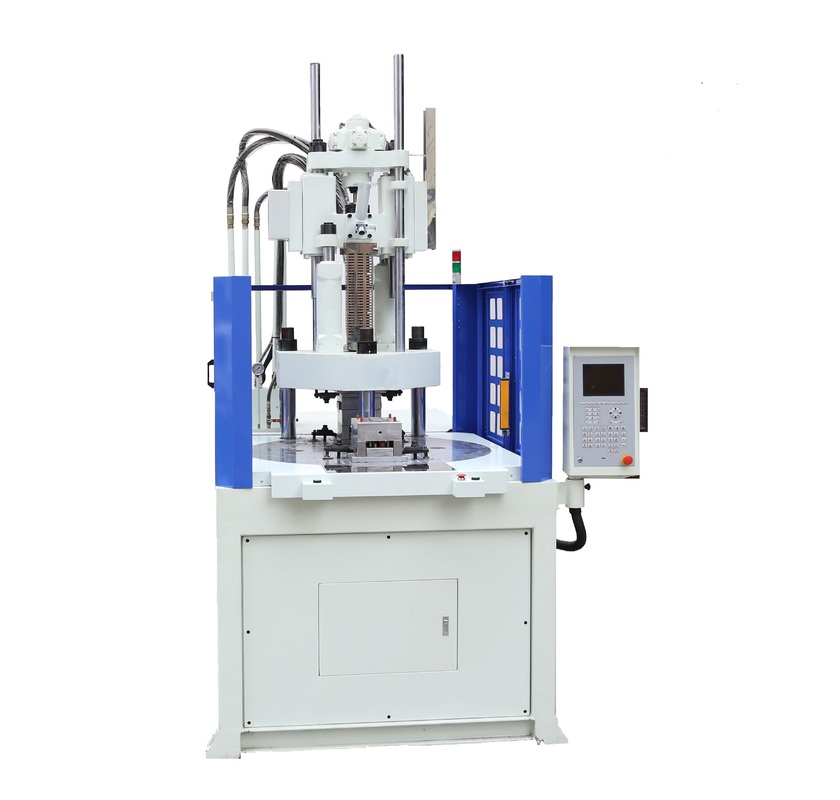

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)
Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
Packaging & Delivery
