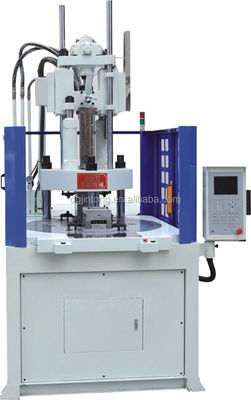

55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Detalhes do produto:
| Lugar de origem: | Guangdong, China |
| Marca: | JINTONG |
| Número do modelo: | JTT-550R |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 peça |
|---|---|
| Preço: | $19,000-21,000 / piece |
|
Informação detalhada |
|||
| Capacidade de Plastificação: | 150 g/s | Altura do molde: | 160 - 300 mm |
|---|---|---|---|
| Número do ejetor: | 2 | Golpe de ejetor: | 60 mm |
| Força do ejetor: | kN 1,8 | Volume teórico do tiro: | 170 cm3 |
| Taxa de injeção: | 113 g/s | Peso da injeção: | 141g |
| Velocidade do parafuso: | 0 - 215 rpm | Diâmetro do parafuso: | 40 mm |
| Razão para parafuso L/D.: | 22 | Distância entre as barras de ligação: | 510 milímetros |
| Peso: | 2400kg | Traço Aberto: | 540 mm |
| Poder: | 12,8 QUILOWATTS | ||
| Destacar: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Descrição de produto

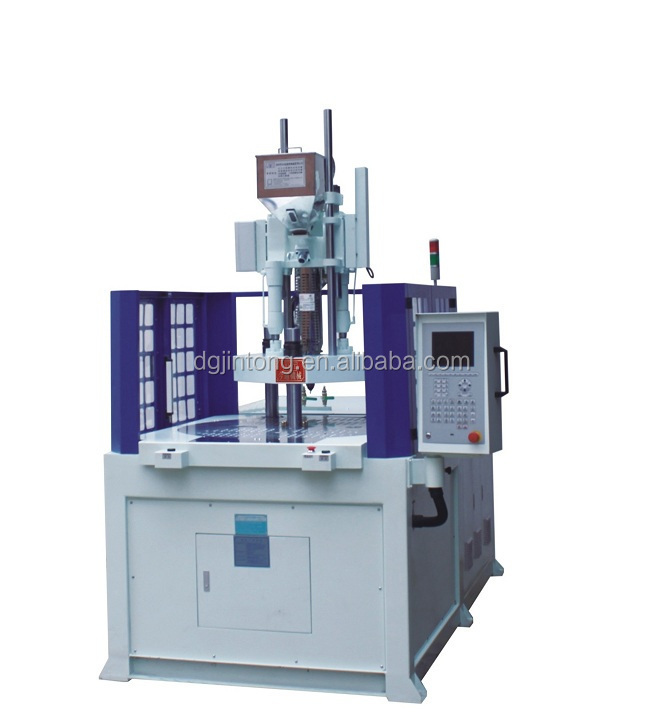

Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
